DE Medical Technology Jiangsu Co.,Ltd

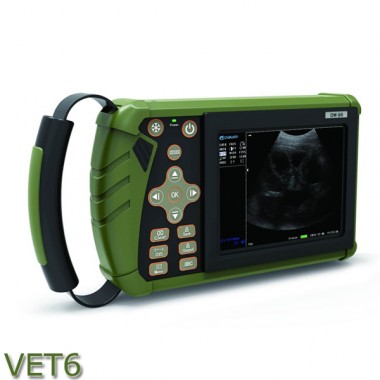

Plam Veterinary Ultrasound Diagnostic System VET 6 for animal pregnancy /disease diagnostic

Advantage:

     VET6 Ultrasound gathers the latest digital system archiecture to rovide high-quality two-dimensional images.Compared with traditional desktop and portable b/w products ,it has more compact body and convenient features which willl make it play a greater role in the field of veterinary .It is suitable for pigs,dogs,cats ,sheep ,cattle,horses and other animals.

Scope of Application:
 Detect pregnancy
 Estimate fetal quantities
 Diagnose disease
 Fetal vitality evaluation
 Fetal heart beats
 Applicable to: sheep, pigs, dogs and other animals for pregnancy diagnosis(integration of six common animal gestational age measurement data kits)

Measurement Table :
  Swine: HLA, SLA

  Cattle: CTD,CHL,CCRL

  Dog:HD,BD,GSD,CRL
  Sheep: STD, SHD, SCRL

  Equine:EEGD,ECD,ESD,EBD

  Cat: HD,BD

  Image processing:up/down,left/right flip,pseudo color processing

  Frame correlation,focus conversion

  Interfaces: Mini USB interface,TF card interface


Standard configuration:
 machine ( including one lithium battery )
  user manual
  8G TF memory card
  Adapter

  opptional probe:

    * 7.5MHz High-frequency linear array probe

    * 6.5MHz Rectal probe

    * 7.5MHz back fat probe

    * 5.0MHz micro conves probe

    * Lithium-ion battery

    * Car adapter

    * External charger

    * Horseshoe converter

Technical Specification:
  Monitor: 5.6inch LED
  Focus:three sections electronic focus ,support point by point focus
  Frequency: 2.5MHZ, 10MHZ, 3.5MHZ, 5.0MHZ
  Display mode: B, B+B
  Playback: 255 frames.
  Depth: 46-208mm, adjustable
  Grey map: 256
  Pseudo color: 8 kinds
  Measurement: distance,perimeter,area,gestational age,etc.
  Extend ports: Mini USB port, TF card slot.
  Power consumption: 13W(working in non-charging state)/25W(working in charging state)
  Image storage: with TF card and USB port

  Machine dimension: 240x120x45mm
  Machine weight: 800g
